World-Leading Mechanical Recovery of Ultra-Thin Oil Sheen

The Aqua-Guard RBS TRITON™ 10 – CFSH Sheen Recovery System addresses the critical gap between mechanical oil recovery and sorbents, specifically the effective recovery of thin oil layers (sheens). Existing mechanical solutions are effective in light to heavy viscosity oil spills (thick oil layers) but are not efficient in “film-type, oil sheens”.

The vast majority of sorbents, the current primary method for sheen recovery, are inefficient, wasteful and costly to dispose of. As a result, these spills are most often deemed “non-recoverable” and bypassed, leaving the oil to disperse throughout the sensitive marine environment, causing long-term ecological harm and social/economic damages.

Aqua-Guard’s CFSH (Carbon Fibre Super Hydrophobic) recovery technology directly addresses this critical gap by providing a mechanical solution capable of efficiently recovering previously deemed non-recoverable oil sheens less than 50 microns, down to less than 0.08-micron thickness.

UNIQUE: The only mechanical oil skimmer that is capable of efficiently recovering oil films/sheens

PATENTED: Patented oil and sheen recovery technology - Canada: 2,578,942 & 3,280,504 (pndg) | United States: 7,303,688 & 19/201,641 (pndg)

TESTED: 3rd party witness testing with Det Norske Veritas (DNV) to ASTM F631-15 standard – 99.993% oil to water ratio

VERSATILE: Able to be converted into a high-capacity oil skimming system allowing the system to be effective at all stages of an oil spill

COST EFFECTIVE: Replaces single-use sorbents and chemical dispersant, reducing upfront material purchase and costly waste disposal (increased ROI)

ENVIRONMENTAL BENEFITS: Greater NEB (Net Environmental Benefit) and increased public trust vs sorbents

Applications:
• marinas
• stricken/sunken vessels
• pipeline crossings
• terminals
• ports
• lakes, rivers
• harbours, refineries
• bunkering operations

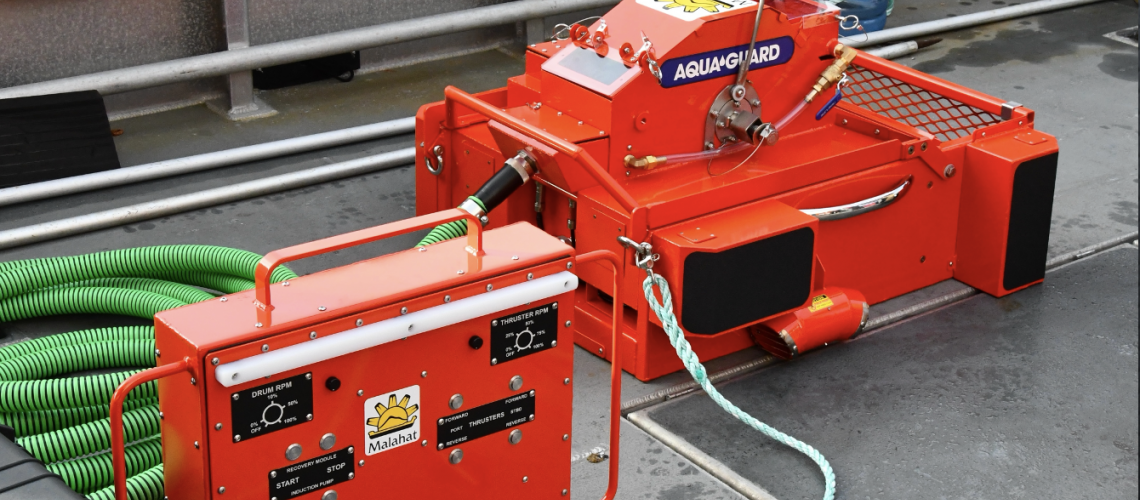

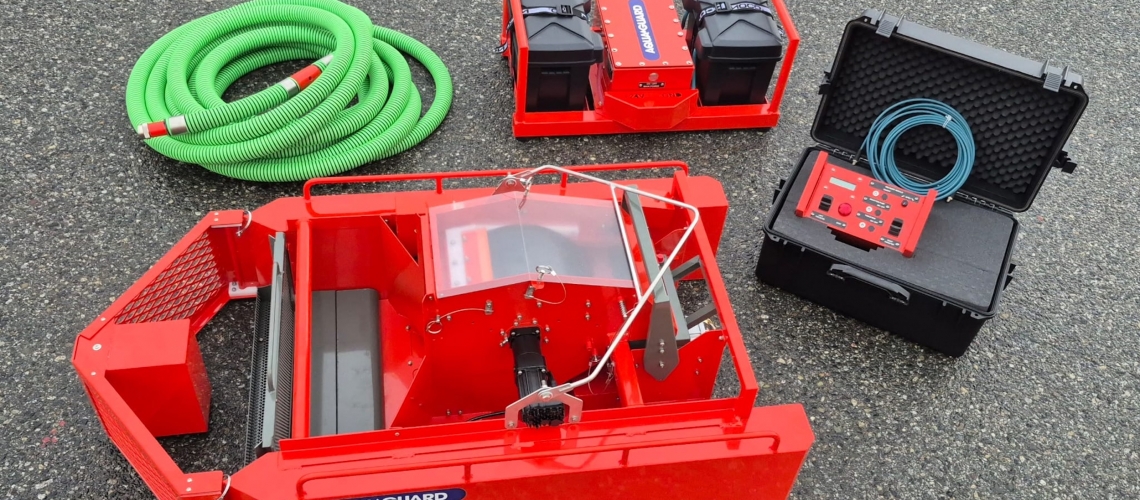

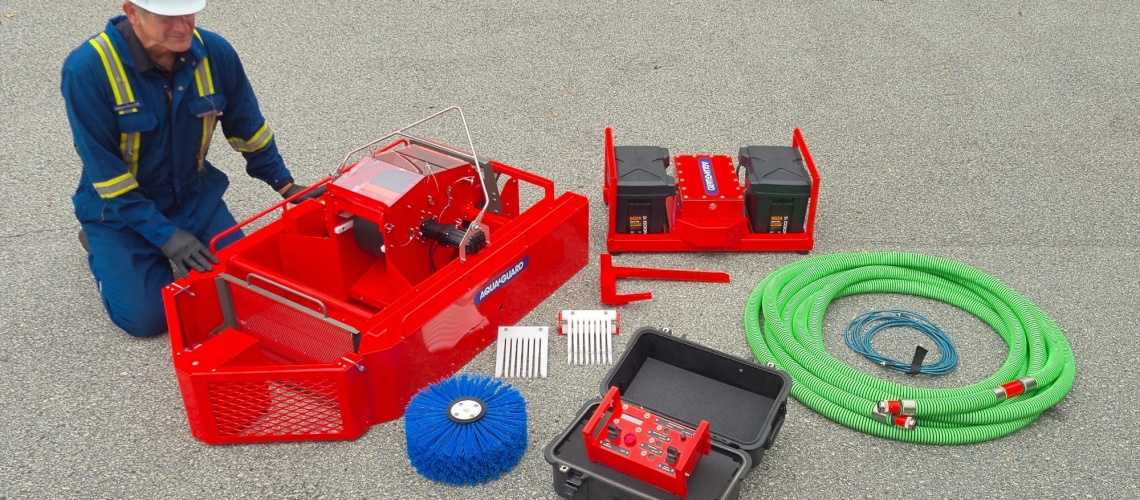

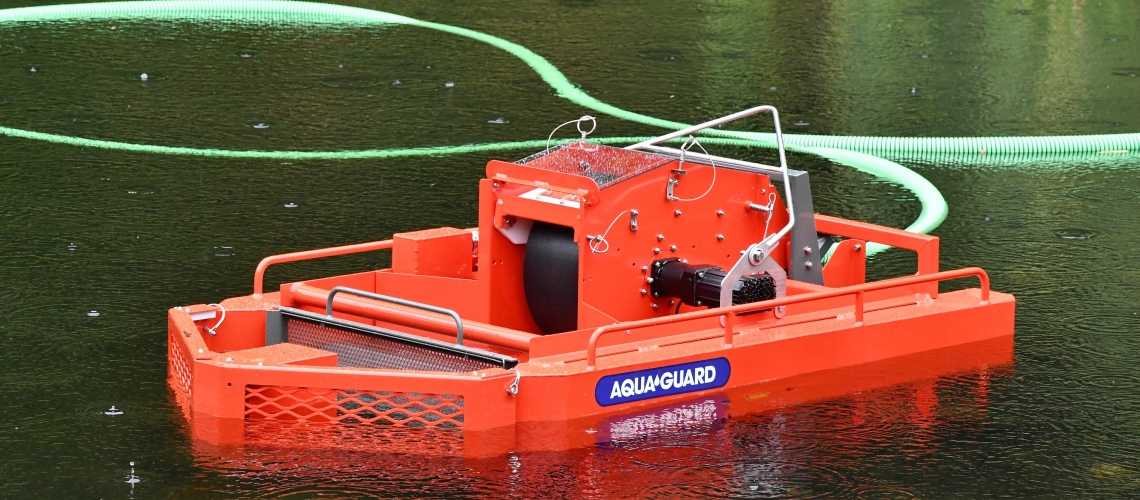

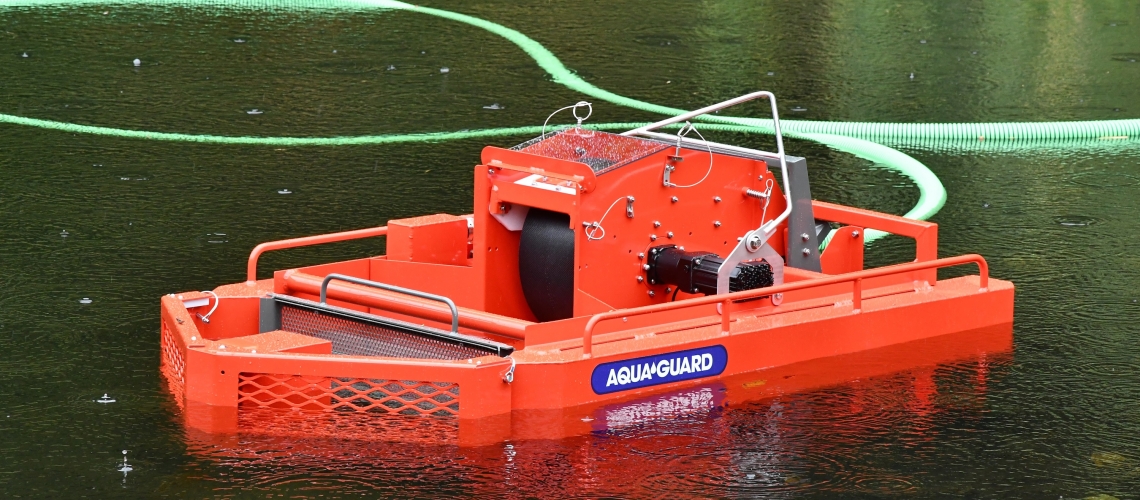

System Components:
• RBS TRITON™ 10 skimmer head
• CFSH rotating drum recovery module
• Integrated flow induction system
• Dual thrusters for maneuverability
• 15 m floating umbilical hose
• Onboard 5-litre oil reservoir
• Discharge camlock for pumping (oil transfer during larger spills)

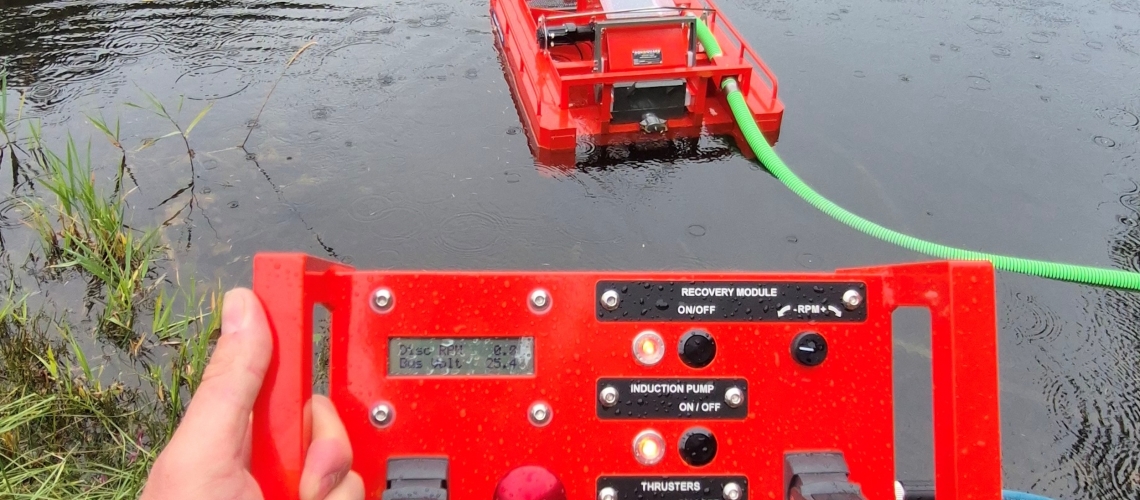

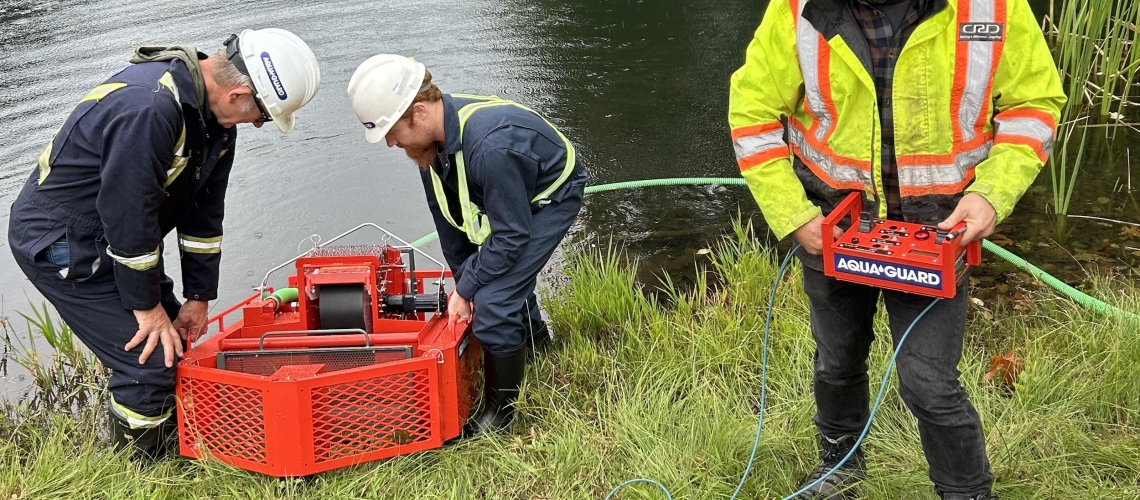

• Control panel (operated via battery power)
• Waterproof control panel transport case

Manufacturer:

Aqua-Guard Spill Response Inc.
North Vancouver, British Columbia, Canada

Recovery rates depend on oil encounter rate and sheen thickness

CFSH Sheen Recovery Skimmer Specifications

Capacity m³/h	Capacity bbl/h	# Recovery Modules	Open Water	Protected Water	Calm Water	Industrial Solutions
		1	–	YES	YES	YES

Technical Specifications:

Oil to water ratio: 99.993%
Sheen recovery thickness: down to 0.08 microns

Contact Aqua-Guard for detailed technical specifications
